Hexagon AEON Pilot
By Hexagon · Sweden · Humanoid robots
Robot 500: watchlist · not enough published evidence to rank yetHeight
1.65 m (5 ft 5 in)
Weight
60 kg (132 lb)
DOF
34
Runtime
5 h
Price
Not published
16 sourced values · 17 not disclosed (48% disclosed)Checked by our QA desk on 2026-10-20Official pageReport an error
Overview

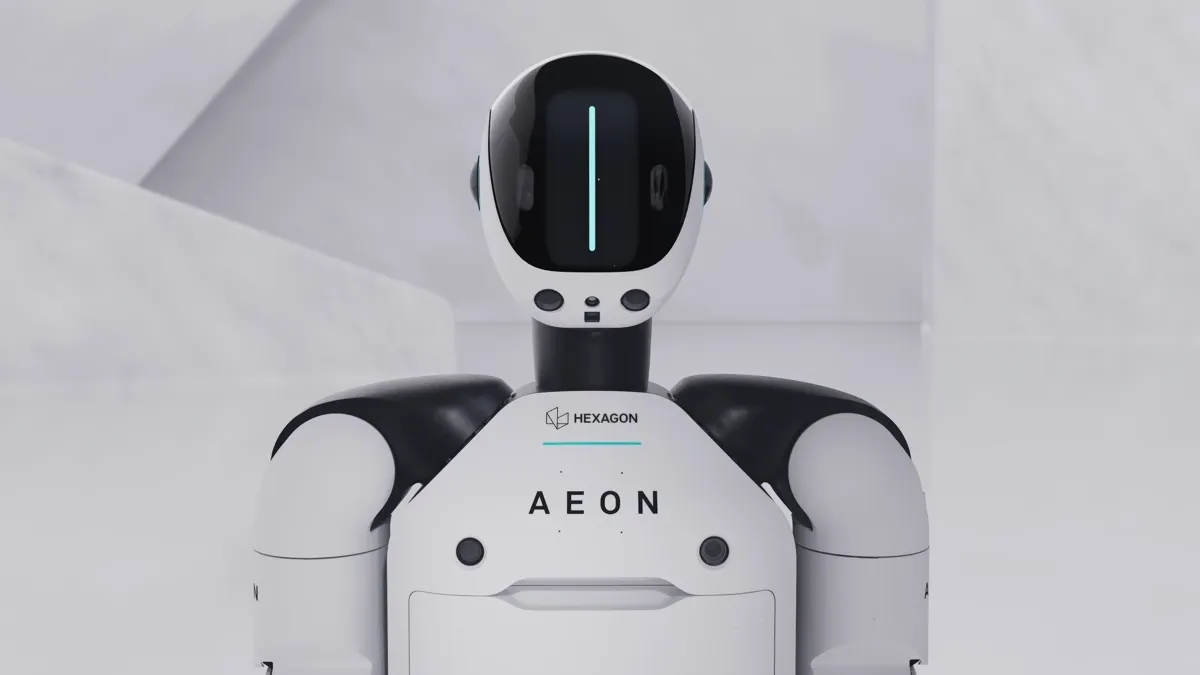

Sweden-based Hexagon makes AEON, a humanoid robot. At 1.65 m and 60 kg it sits close to the middle of the field, just under the database median height of 1.7 m and a kilogram below the median weight of 61 kg. Hexagon describes its software as AI-driven mission control and spatial intelligence, running on NVIDIA accelerated computing, Omniverse and Jetson, without naming a specific chip.
Hexagon announced the robot on 17 June 2025 and lists its status as pilot. No price has been published.
Endurance and handling are the clearest figures. The maker states a runtime of 300 minutes, and the battery is hot-swappable. Constant carrying capacity is 8 kg, with 15 kg possible for short lifts. Top speed is given as 2.4 m/s, though Hexagon does not say whether that means walking or running, and the 34 degrees of freedom come without a counting method. Battery capacity, charge time, per-hand dexterity and safety certifications have not been published.
Against other humanoid robots
Where the published figures sit among the 90 humanoid robots in our database. Only robots whose makers publish the same figure are counted.
| Figure | Hexagon AEON | Median | Range | Robots publishing it |
|---|---|---|---|---|
| Height | 1.65 m | 1.7 m0.57 m – 1.9 m · 66 robots | 0.57 m – 1.9 m | 66 |
| Weight | 60 kg | 61 kg5.5 kg – 230 kg · 73 robots | 5.5 kg – 230 kg | 73 |
| DOF | 34 | 2912 – 164 · 71 robots | 12 – 164 | 71 |
| Runtime | 5 h | 3 h30 min – 20 h · 51 robots | 30 min – 20 h | 51 |
| Max walking speed | 2.4 m/s | 1.8 m/s0.4 m/s – 6 m/s · 40 robots | 0.4 m/s – 6 m/s | 40 |
| Carry payload | 8 kg | 20 kg1.5 kg – 160 kg · 28 robots | 1.5 kg – 160 kg | 28 |
Hexagon publishes 16 of the 33 figures we track for the Hexagon AEON (48%). The median across the 90 humanoid robots in our database is 53%, so it discloses more than 28 of them.
Background reading: Humanoid robots you can buy in 2026 · How to read a humanoid robot spec sheet in 2026 · How much does a humanoid robot cost? Every price we could find (2026).
Prices and where to buy
We don't earn anything from the links below. If that changes, this notice will say so before the links.
Hexagon hasn't published a price. Enquiries go through the maker's sales team.
Prices change often; the maker's page is authoritative. Amazon prices are shown only through Amazon's own links.
Full specifications
Every value shows its confidence: Manufacturer stated by the maker · Verified independently confirmed · Estimate our calculation from official figures · Reported credible media, retailer or trade-show report, not confirmed by the maker · ⚠ Unconfirmed leak, rumour or single source — treat with caution · Not disclosed not published. Every value, whatever its confidence, links to its source. How we source specs.
| Announced | |
|---|---|
| Status | |
| Units deployed |
| Height | |
|---|---|
| Weight | |
| Form factor | |
| IP rating |
| Max walking speed | 2.4 m/s (8.6 km/h · 5.4 mph)ManufacturerSource: robotics.hexagon.com (2026-10-03)Conditions: top speed as stated; gait not specifiedMaker's figure is an "up to" value. |
|---|
| Total degrees of freedom | |
|---|---|
| DOF per hand |
| Carry payload | 8 kg (18 lb)ManufacturerSource: robotics.hexagon.com (2026-10-03)Conditions: constant carry; arm split not stated |
|---|---|
| Per-arm payload | |
| Peak lift |
| Processor | NVIDIA accelerated computing, NVIDIA Omniverse, and NVIDIA JetsonManufacturerSource: hexagon.com (2026-09-23) |
|---|---|
| AI performance | |
| AI stack | |
| Teleoperation |
| Cameras |
|---|
| Battery | |
|---|---|
| Runtime | |
| Charge time | |
| Hot-swappable battery |
| SDK | |
|---|---|
| ROS support | |
| Open source | |
| App ecosystem |
| Certifications | |
|---|---|
| Collaborative operation |
| Regions sold |
|---|
Cite: RankedRobot, https://rankedrobot.com/robots/hexagon-aeon/ (checked 2026-10-20) · Plain-text spec sheet · Open data
